EAC Certified electric flanged butterfly valve factory testing

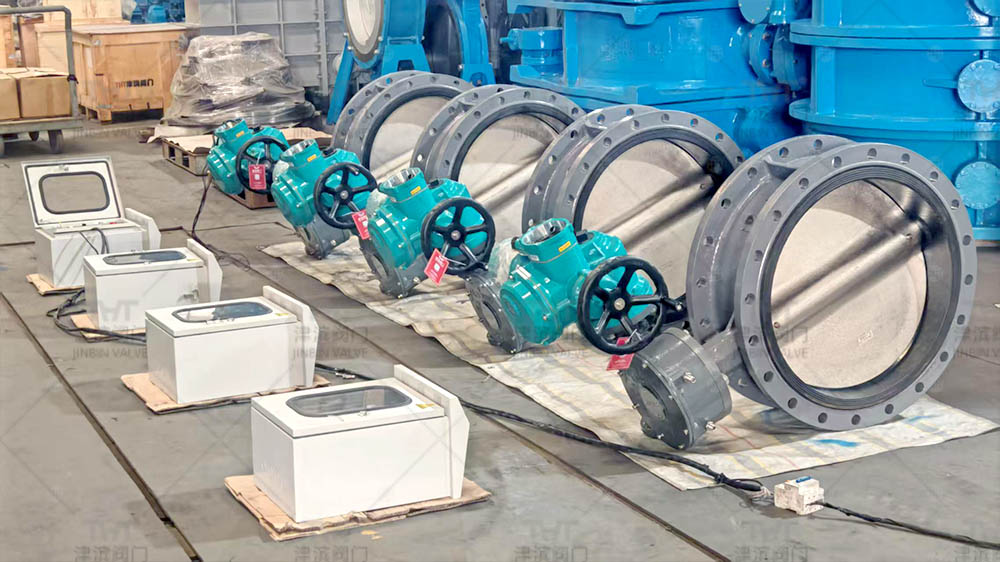

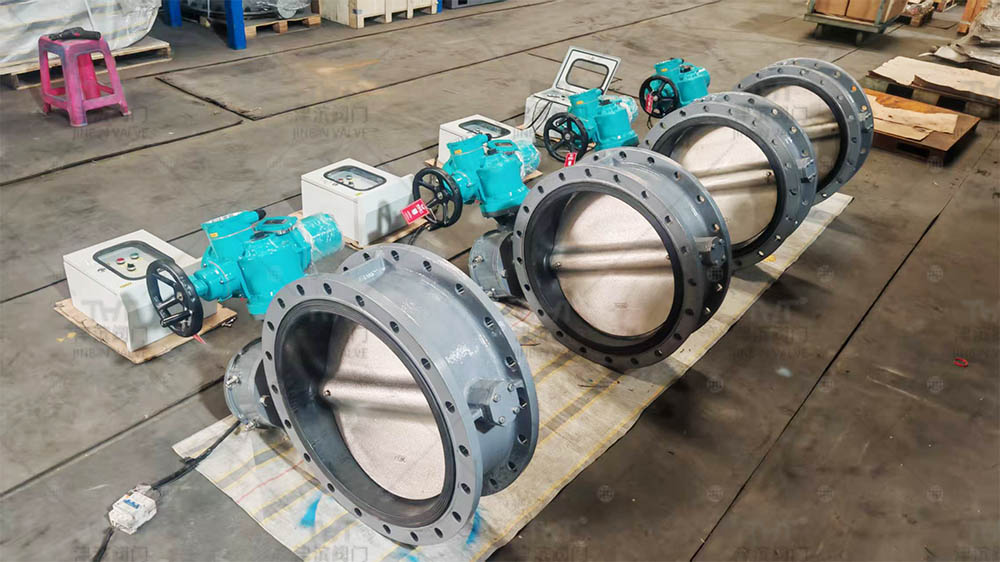

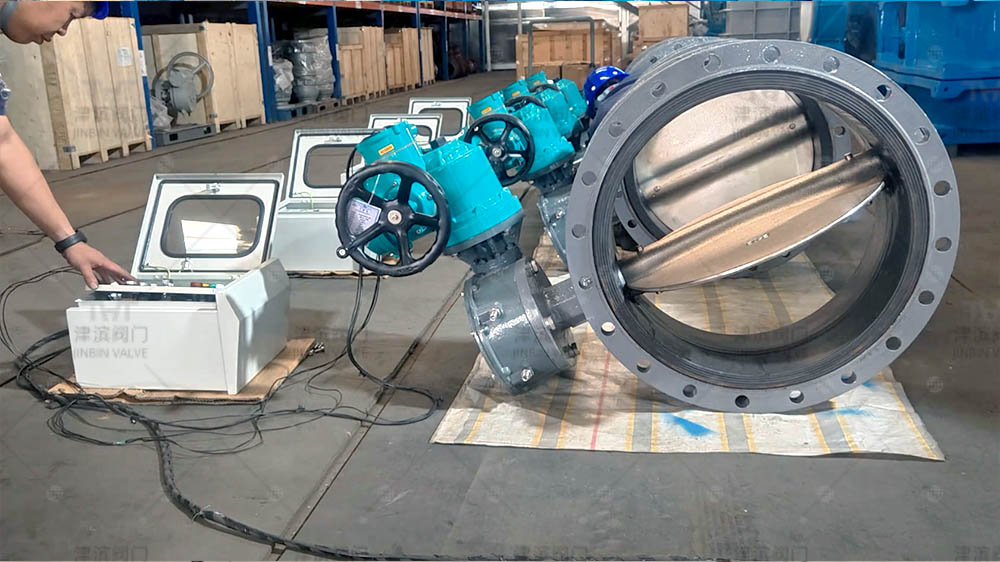

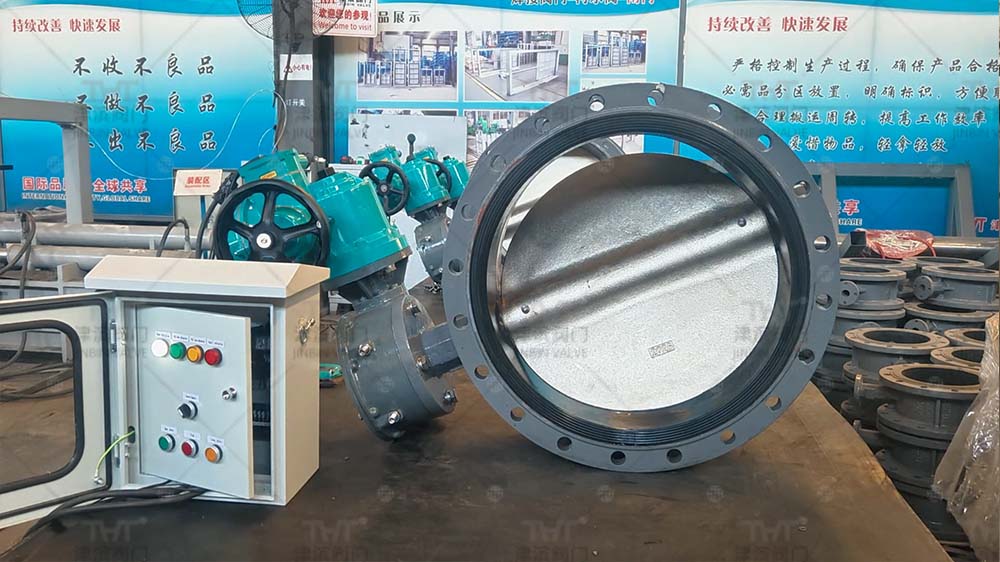

This batch of D941X3-10CB1 electric flanged resilient seated butterfly valves comes with separate control cabinets. All units have completed pre-shipment power-on joint commissioning. Our electricians performed full operational tests on each butterfly valve and its matched control cabinet one by one. Valve opening/closing movement and signal feedback are stable, all test items passed inspection, and the customer is satisfied with the test results.
The working medium of this project is clean water, with maximum operating temperature ≤80℃ and nominal pressure PN10. The project adopts DN600 large size. The customer picked this butterfly valve mainly because it fits clean water pipeline service conditions and holds valid EAC Customs Union certification, which allows direct deployment in engineering projects across Eurasian regions. The valve body is cast steel WCB. The butterfly disc is anti-corrosion ductile iron, fitted with EPDM rubber seals, offering good resistance to water corrosion and aging. Adopting concentric design, the valve requires low operation torque and delivers reliable sealing.
The matched electric actuator is fitted with a manual handwheel. Operators can manually open and close the valve during power outages to meet emergency pipeline operation requirements. The external standalone control cabinet supports both local and remote control modes. Maintenance staff can easily carry out on-site commissioning, status monitoring and fault troubleshooting. It is well suited for large water supply networks, pump stations, water treatment plants and other industrial applications.
This valve has practical strengths for overseas water engineering projects. The large-diameter flanged connection makes installation straightforward and ensures good interchangeability with existing pipelines. Its resilient seated construction achieves zero leakage to keep fluid transport safe. The WCB cast steel body maintains stable pressure resistance, stands up to impact and delivers a long service life. Every valve set goes through individual power-on verification before shipment to confirm proper movement and signal response, cutting down risks during site installation and commissioning. The whole assembly meets Eurasian regional standards with valid EAC certification, removing hurdles for customers on customs clearance and project approval.
We enforce strict quality checks at every stage, from solution selection and production machining to pre-delivery performance testing, to ensure consistent product performance. This electric butterfly valve system is widely deployed for municipal water supply, industrial circulating water and water treatment fluid pipelines. It is a proven valve solution for shut-off and flow regulation on large bore pipelines in overseas water projects.
Our team provides end-to-end technical support including valve selection, drawing review, factory witness testing and after-sales service. We keep optimizing valve material configuration and electric control packages to match varied requirements from global industrial buyers. Whether you are working on municipal water supply, circulating water systems or other clean liquid pipelines, our EAC certified electric flanged butterfly valves deliver stable operation, low maintenance cost and long-term safety for your infrastructure projects. Our workshop accepts custom modifications on valve material, size and electric control setup to match your specific working conditions.
