Electric flow control valve: An automated valve for intelligent fluid control

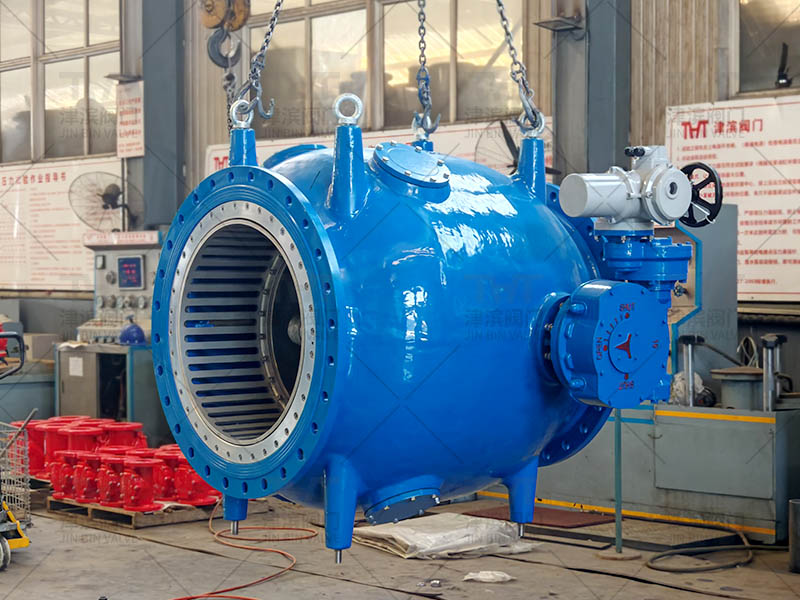

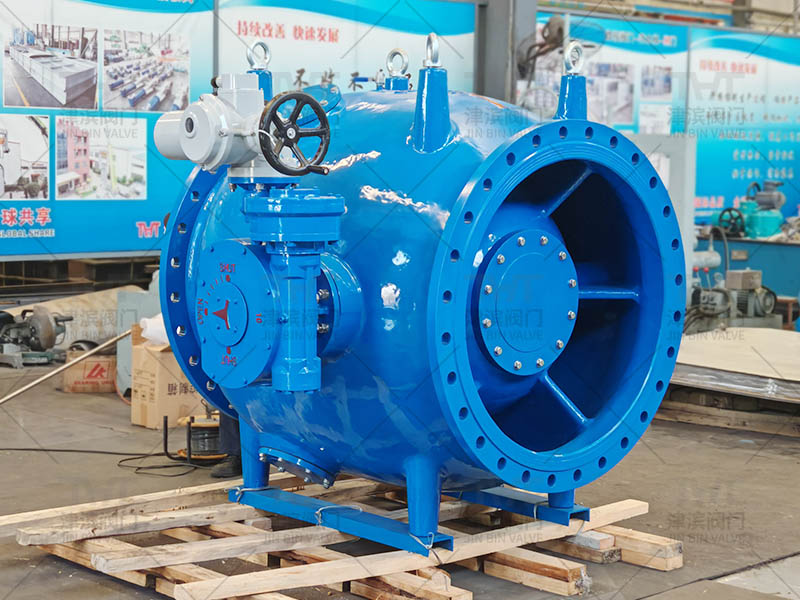

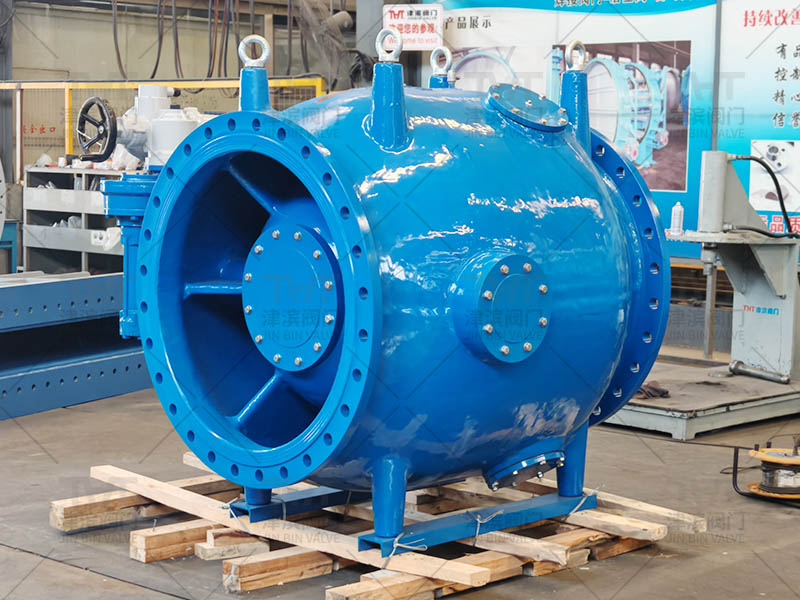

Jinbin factory has completed an order task for electric flow control valve and is about to package and ship them. The flow and pressure regulating valve is an automated valve that integrates flow regulation and pressure control. By precisely controlling fluid parameters, it achieves stable system operation and energy conservation and efficiency improvement. It is widely used in municipal, industrial, water conservancy and other fields. The core of a flow and pressure regulating valve is to adjust the fluid resistance by changing the valve opening degree.
Compared with the "rough" regulation of traditional valves (such as manual valves that can only have a fixed opening degree), the flow and pressure regulating valve can reduce the ineffective work of the pump set motor through on-demand adjustment.
The flow and pressure regulating valve has achieved full coverage in all fields from people's livelihood to industry in practical application.
1. Municipal water supply and drainage
Water supply network: Adjust the pressure of the main pipes at the regional pressure regulating station to solve the problem of uneven pressure in the old network. Replace the traditional pressure reducing valve in the secondary water supply equipment to achieve more precise constant pressure water supply.
Drainage system: Install a flow regulating valve at the outlet of the rainwater pumping station to automatically adjust the drainage flow according to the water level of the downstream river to prevent waterlogging.
2. Industrial process control
Petrochemical industry: Control the medium flow rate in the feed pipeline of the distillation column to ensure the stability of the materials in the reactor. Maintain a pressure of 3.5MPa after the valve in the natural gas transmission pipeline to ensure the safe operation of the downstream compressor.
Thermal power plant: Regulate the steam flow of the steam turbine to adapt to changes in the power generation load; Control the back pressure in the condensate recovery system to improve the thermal efficiency.
3. Water conservancy and Environmental Protection Engineering
Reservoir water conveyance: Install a flow regulating valve at the inlet of the irrigation main channel, which automatically distributes the flow according to the water demand of the irrigation area to prevent the channel from operating under overload.
Wastewater treatment: Control the flow of compressed air in the aeration system to ensure that the dissolved oxygen concentration in the biochemical tank remains stable at 2-4mg/L, thereby enhancing the treatment efficiency.
4. Building fire protection and agricultural irrigation
Fire protection system: Maintain a pressure of 0.6MPa in the sprinkler network to ensure that the water intensity of the sprinkler heads meets the standards during a fire. Cooperate with the alarm system to achieve interlocking control.
Agricultural irrigation: In the drip irrigation system, through the flow control mode, the error of irrigation volume per mu is less than 5%. Combined with the pressure compensation function, even if the terrain is undulating, water supply can be uniform.
Jinbin Valve has 20 years of valve manufacturing technology and experience, the products are such as double eccentric butterfly valve, large-diameter air damper, water check valve,gate valve, stainless steel penstock gate, discharge valve, etc. if you have related needs, please leave a message below, you will receive a reply within 24 hours, looking forward to working with you!
