High performance triple eccentric butterfly valve for industrial applications

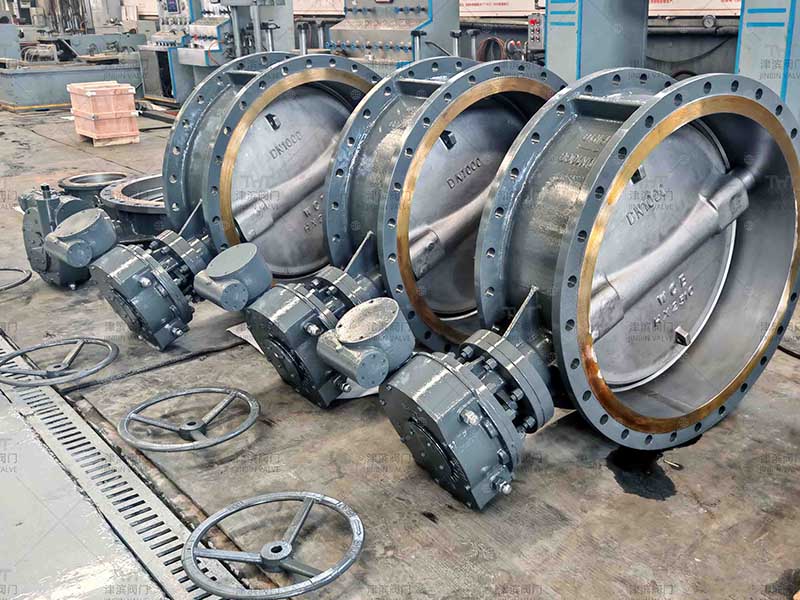

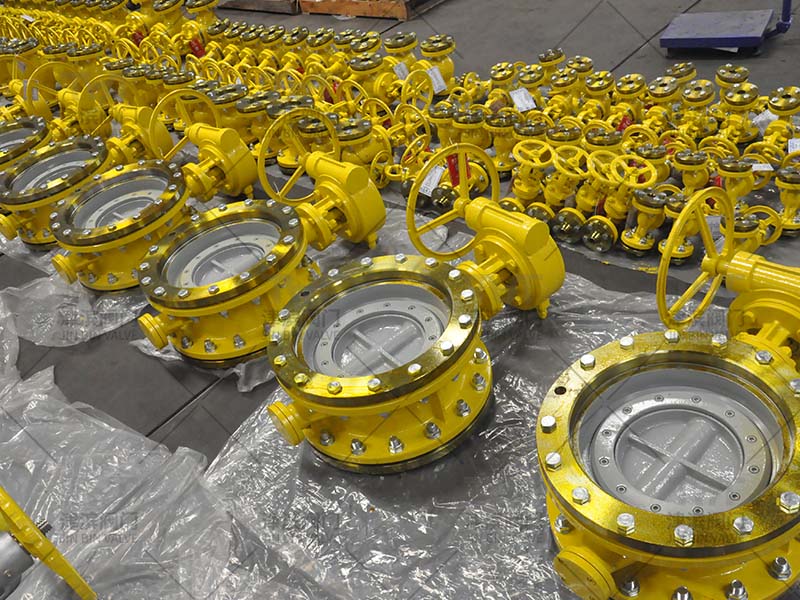

The previous week, the factory completed the production task of a batch of steel butterfly valve. The material was cast steel, and each valve was equipped with a handwheel device, as shown in the following figure.

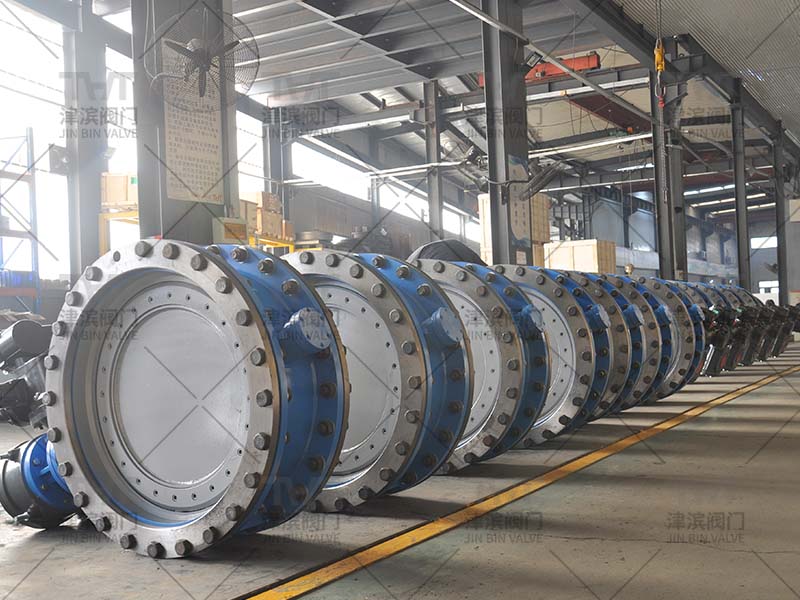

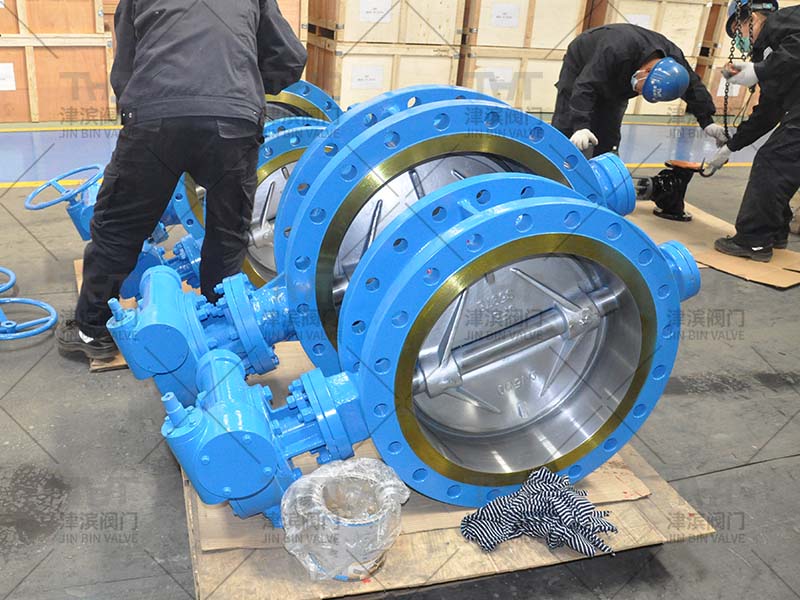

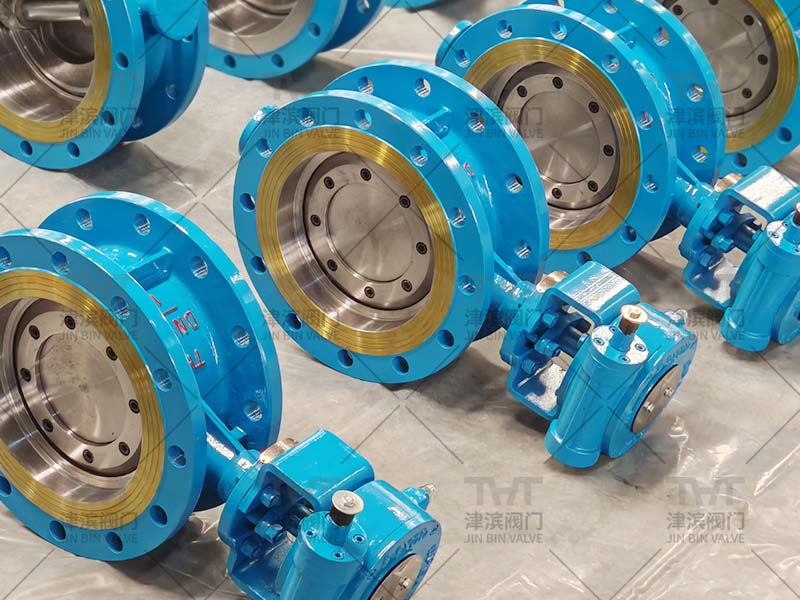

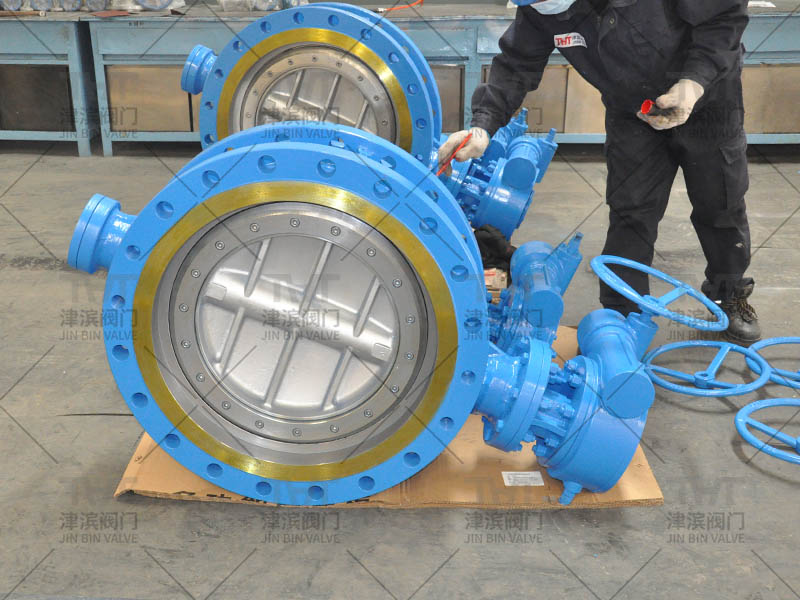

The threeeccentric butterfly valve achieves efficient sealing through a unique structure. When the rotation center of the valve plate (i.e., the shaft center) deviates from the centerline of the valve body, it forms the first eccentricity. The centerline of the sealing surface of the valve plate deviates from the centerline of the valve body, forming the second eccentricity. The sealing surface of the valve seat is designed in a conical shape, so that the sealing surface of the valve plate and the sealing surface of the valve seat form a certain Angle. This is the third eccentricity.
When opening the valve, the valve plate, under the action of the driving device, first detaches from the sealing surface of the valve seat and then rotates to reduce friction. When closed, after the valve plate rotates into position, under the pressure of the medium or the force of the driving device, it closely adheres to the sealing surface of the valve seat, blocking the flow of the medium. This three-eccentric design ensures that during the opening and closing process of the valve, there is almost no friction between the valve plate and the valve seat sealing surface, thereby extending the service life. Meanwhile, it can achieve bidirectional pressure resistance and has good sealing performance.
The scenarios in which china triple eccentric butterfly valves are widely used:
1. Petrochemical field: In the catalytic cracking units of oil refineries, it is used to control high-temperature, high-pressure oil and gas media containing particulate impurities to ensure the stable operation of the unit; In chemical production, when transporting highly corrosive acid and alkali solutions, its special sealing structure can effectively prevent medium leakage and ensure production safety.
2. Power industry: In the steam pipeline system of thermal power plants, the triple eccentric manual butterfly valve （worm gear butterfly valve）can adapt to the working conditions of frequent opening and closing of high-temperature steam and precisely regulate the steam flow. In the cooling system of the nuclear island of a nuclear power plant, with high reliability and sealing performance, the safe delivery of coolant is guaranteed and the leakage of radioactive substances is prevented.
3. Urban water supply and drainage: The sewage discharge pipes of large-scale sewage treatment plants can cut off high-concentration sewage to prevent backflow pollution. It is used on the main pipes of the urban water supply system to quickly cut off the water flow, facilitating pipeline inspection and maintenance, and ensuring the stability of urban water supply.
4. Metallurgical industry: The blast furnace gas pipelines in steel mills can achieve reliable sealing in harsh environments with high pressure and dust, effectively control the gas flow, and provide stable energy for blast furnace smelting.
